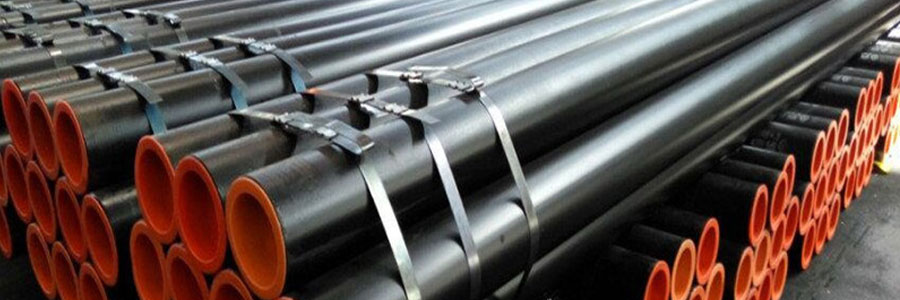

VM Energy Solutions INC is a famous manufacturer and distributor of API 5L X46 PSL2 Line Pipes, which are well acceptable in nature and are offered in several configurations. Solution annealing of our API 5L X46 PSL2 Line Round Pipes is not essential for the reason that the mechanical houses of as - built state are showing desired values. An exception to this is that it has approximately 24 % of chromium, and can be used to stand as much as scaling at temperatures as an awful lot as 1100 Degree C. It specifically occurs due to environmental factors in conjunction with wind exposure, enterprise pollution and prolonged temperatures, and is worse closer to the sea, a main cause of salt water pollution. The chromium and nickel contents in this product are reduced to increase the cold-work - hardening rate.
We offer an intensive kind of API 5L X46 PSL2 Line Square Pipes, in which incredible high-quality of factors is used by our engineers to make the offered kind of the ones products. Like extraordinary austenitic steels in which carbon is not controlled beneath 0.03 %, its miles prone to inter - granular corrosion in the weld heat affected zone. This generates higher tensile strengths in our products while cold-rolled by means of having a lower loss of ductility. It is heated as an awful lot as 980 Degree C – 1065 Degree C, preserving for about half an hour then quenching in air or oil.
While it is cold-worked, API 5L X46 PSL2 Line Rectangular Pipes turns into slightly greater magnetic than extraordinary tremendous austenitic steels. It can be machined, shot - peened and polished in as - built or pressure relieved states if required, in which the rust is the plain visible evidence of corrosive activity. It has very immoderate weld ability, smooth for installation and immoderate antifouling houses in competition to sea microorganisms. We offer an in depth array of this steel, which is powerful in manufacturing and is offered by means of having several finishing standards.
We Keep Bulk Stock Of API 5L X46 PSL2 ERW Pipe, API 5L X46 PSL2 Carbon Steel HFW Pipe at Our Stockyard, Check API 5L X46 Carbon Steel Line Pipes Dimension, Buy API 5L X46 PSL2 ERW Pipe at an Affordable Price In India.
Grade | API 5L X46 PSL 2 (American Petroleum Institute) |
API 5L X46 PSL2 ERW Pipe Size | 1/2" NB - 24" NB |
API 5L X46 PSL2 SAW/LSAW Pipe Size | 16" NB - 100" NB |
API 5L X46 PSL2 Seamless Pipe Size | 1/2" NB - 60" NB |
Form | Round, Square, Rectangular, Hydraulic Etc |
Type | Seamless / ERW / Welded / Fabricated / EFW |
Length | Single Random, Double Random & Cut Length. |
Length | Min 3 Meters, Max18 Meters, or according to customer's requirement. |
mass fraction, based upon heat and product analysis % maximum | Carbon equivalent a | ||||||||||
% maximum | |||||||||||
Steel Grade | C (b) | Si | Mb | P | S | V | Nb | Ti | Other | CE (iiw) | CE Pcm |
SEAMLESS & WELDED PIPES | |||||||||||
L320N or X46N | 0.24 | 0.40 | 1.20 | 0.025 | 0.015 | 0.07 | 0.05 | 0.04 | d, e, l | 0.43 | 0.25 |
L320Q or X46Q | 0.18 | 0.45 | 1.40 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e, l | 0.43 | 0.25 |
WELDED PIPE | |||||||||||
L320M OR X46M | 0.22 | 0.45 | 1.30 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e, l | 0.43 | 0.25 |
Pipe Grade | Pipe Body of Seamless and Welded Pipes | Weld seam of HFW, SAW and CIW pipes |
|||||
Yield Strength Mpa (psi) |
Tensile Strength Mpa (psi) |
Ratio a,c rt0.5lrm | Elingation (on 50 mm or 2 in) af % |
Tensile Strength Mpa (psi) |
|||
min | max | min | max | max | min | min | |
L320N or X46N L320Q or X46Q L320M or X46M |
320 (46 400) |
525 (76 100) |
435 63 100) |
655 (95 000) |
0.93 | f | 435 (63 100) |
GRADE RANGE | A25 THROUGH X70 | GR B THROUGH X80 | TABLE 1 |
SIZE RANGE | 0.405 THROUGH 80 | 4-2/1 THROUGH 80 | TABLE 1 |
TYPE OF PIPE ENDS | PLAIN-END, THREADED-END, BEVELLED-END, SPECIAL COUPLING PIPE | PLAIN-END | TABLE 1 |
SEAM WELDING | ALL METHODS CONTINOUS WELDING LIMITED TO GRADE A25 | ALL METHODS EXCEPT CONTINOUS AND LASER WELDING | TABLE 1 |
ELECTRIC WELDS: WELDER FREQUENCY | NO MINIMUM | 100 KHZ MINIMUM | 5.1.3.3.2 |
HEAT TREATMENTS OF ELECTRIC WELDS | REQUIRED FOR GRADES > X46 | REQUIRED FOR ALL GRADES (GR B THROUGH X80) | 5.1.3.3.1; J.3.3.2:6.2.7 |
CHEMISTRY: MAX C FOR SEAMLESS PIPE | 0.28% FOR GRADES > GR B | 0.24% | TABLES 2A, 2B |
CHEMISTRY: MAX C FOR WELDED PIPE | 0.26% FOR GRADES > GR B | 0.22% | TABLES 2A, 2B |
CHEMISTRY: MAX P | 0.03% | 0.03% | TABLES 2A, 2B |
CHEMISTRY: MAX S | ONLY WHEN PURCHASES SPECIFIES SR18 | 0.02% | TABLES 2A, 2B |
CARBON EQUIVALENT | NONE | MAXIMUM REQUIRED FOR EACH GRADE | 4.2:4.3:6.1.3: SR15.1 |
YIELD STRENGTH, MAXIMUM | NONE | MAXIMUM FOR EACH GRADE | TABLES 3A, 3B |
UTS, MAXIMUM | NONE REQUIRED | MAXIMUM FOR EACH GRADE | TABLES 3A, 3B |
FRACTURE TOUGHNESS | ONLY WHEN PURCHASER SPECIFIES SR4 | REQUIRED FOR ALL GRADES | 6.2.6; 9.3.5: 9.8.4; 9.10.7; |
NON-DESTRUCTIVE INSPECTION OF SEAMLESS PIPES | PERMITTED | SR4 MANDATORY | TABLE 14 9.7.2.6 |
REPARE BY WELDING OF PIPE BODY, PLATE AND SKELP | PERMITTED BY AGREEMENT | PROHIBITED | 5.3.2;9.7.6: B.1;B.2 |
CERTIFICATION | CERTIFICATES WHEN SPECIFIED PER SR15 | PROHIBITED | 4.3;9.7.4.4;9.7.6;B.1.2;B.4 |
TRACEABILITY | TRACEABLE ONLY UNTIL ALL TESTS ARE PASSED UNLESS SR15 IS SPECIFIED | CERTIFICATES (SR15.1) MANDATORY TRACEABLE AFTER COMPLETION OF TESTS (SR15.2) MANDATORY |
12.1 5.6 |
