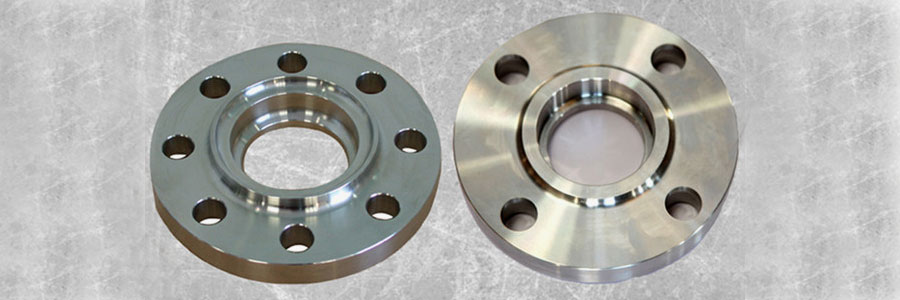

Forged Flanges
ANSI B16.5 Forged Flanges, API 6A Forged Flange, Forged Raised Face Flanges, EN1092-1 Forged Flanges at Best Price in India.
VM Energy Solutions INC is an acknowledged manufacturer and trader of Forged Pipe Flanges which is an excessive hardness and sturdiness grade, by and large for shafting. Monel Alloy Forged Flanges have remarkable corrosion resistance, strangely precise formability, and boom in strength as an end result of cold work. Thus it's far considerably utilized in heavy gauge welded components (over approximately 6mm), due to the fact with its better carbon content material has application at improved temperatures, as does stabilised grade. They are frequently best for applications requiring rather excessive tensile strength and effect resistance. It is appropriate for working within the vital sensitization variety, 550 Degree C to 850 Degree C, and in slow cooling operations in such temperature variety.
Hatselloy Alloy Forged Flanges forms a chain of excessive carbon martensitic steels, due to the fact they've fundamental corrosion resistance and extraordinarily excessive hardness and put on resistance. The important elements that validate the outstanding properties of our products are unfastened from any inner defects. It is a car exhaust grade - weld stabilized, and proof against mildly corrosive environments. They are magnetic, have precise ductility and resistance to corrosion and oxidation. It gives better resistance to chlorides, however with comparable resistance to strain corrosion cracking. They are magnetic, due to the fact they're in particular used wherein hardness, strength, and put on resistance are required.
Carbon Steel Forged Flanges, Stainless Steel Forged Flanges, DIN-PN16 Steel Forged Flanges, Duplex Steel Raised Face Forged Flanges, API 6A Forged Flanges, JIS 5K Forged Flanges, Check BS1560 Forged Supplier in Mumbai, India.
Like maximum alloys, Nickel Alloy Forged Flanges has an excessive most working temperature (approximately 870 Degree C). Finally, it's far endorsed to dry the surface to keep an excellent superficial condition. In moist or humid situations iron on this steel reacts with the oxygen contained in water to shape iron oxide, additionally referred to as rust. It is primarily based totally at the acquainted grade with a sizeable addition of copper, which reduces the work hardening of the steel to permit operations such as cold heading, thread rolling, and progressed machining. It is utilized in hose clamps, exhaust manifolds, stainless hardware, garage tanks, strain vessels and piping. It is an economical and sensible desire for maximum environments, however it doesn’t have the chloride resistance.
We Keep Bulk Stock Of Forged Flanges, MSS SP-44 Forged Flanges at Our Stockyard, Check Nickel Alloy Forged Plate Flanges Dimension, Buy Inconel Raised Face Forged Flanges at an Affordable Price In India.
Forged Flanges Standard Specification
| ASME B16.5 ANSI B16.5 Class 150 Forged Flanges Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
|---|---|
| ANSI B16.5 Class 150 Forged Flanges Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ASME Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ASME B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| ANSI B16.5 Class 150 Forged Flanges Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ANSI B16.5 Class 150 Forged Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Most common types of ANSI B16.5 Class 150 Forged Flanges | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of | ASME DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
|
| ANSI B16.5 Class 150 Forged Flanges Uses & application |
|
Forged Flanges Standard
| Stainless Steel ANSI B16.5 Class 150 Forged Flanges | ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409 |
| Carbon Steel ANSI B16.5 Class 150 Forged Flanges | ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80) |
| Alloy Steel ANSI B16.5 Class 150 Forged Flanges | ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91 |
| Titanium ANSI B16.5 Class 150 Forged Flanges | ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5 |
| Copper Nickel ANSI B16.5 Class 150 Forged Flanges | ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640 |
| Inconel ANSI B16.5 Class 150 Forged Flanges | ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.5 Class 150 Forged Flanges |
| Hastelloy ANSI B16.5 Class 150 Forged Flanges | ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges |
| Monel ANSI B16.5 Class 150 Forged Flanges | ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
| Alloy 20 ANSI B16.5 Class 150 Forged Flanges | ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3 |
| Nickel ANSI B16.5 Class 150 Forged Flanges | ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC |
| Duplex ANSI B16.5 Class 150 Forged Flanges | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Super Duplex ANSI B16.5 Class 150 Forged Flanges | S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Incoloy ANSI B16.5 Class 150 Forged Flanges | ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges |
Bulk Stock of ASTM A182 F304 2500 Lb Forged Flanges, Rate of SS Forged in India, Check online Alloy Steel Forged Flange Pressure Ratings, Largest Raised Face Forged Flanges Stockist in India, We offer ANSI B16.5 Forged Flange in almost all Sizes.
Material Grades Of Forged Flanges
| Stainless Steel Forged Flanges | ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409 |
| Carbon Steel Forged Flanges | ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80) |
| Alloy Steel Forged Flanges | ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91 |
| Titanium Forged Flanges | ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5 |
| Copper Forged Flanges | T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc |
| Copper Nickel Forged Flanges | ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640 |
| Inconel Forged Flanges | ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ANSI B16.5 Class 150 Forged Flanges |
| Hastelloy Forged Flanges | ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges |
| Monel Forged Flanges | ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
| Alloy 20 Forged Flanges | ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3 |
| Aluminium Forged Flanges | 5052 /6061/ 6063 / 2017 / 7075 / etc. |
| Nickel Alloy Forged Flanges | ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC |
| Duplex Steel Forged Flanges | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Super Duplex Forged Flanges | S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Incoloy Forged Flanges | ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges |
| 254 SMO Forged Flanges | ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547 |
| Nimonic Forged Flanges | Nimonic 75, Nimonic 80A, Nimonic 90 |
| Brass Forged Flanges | 3602 / 2604 / H59 / H62 / etc. |
| Other Forged Flanges material | Tin bronze, Alumunum bronze, Lead bronze |
Dimensions of Forged Flanges
| ANSI/ASME/ASA B16.5 150lb/sq.in. Flanges SO-RF | ||||||||||
| ø | D | b | g | m | J | h | k | Holes | l | Kg. |
| 1/2" | 88,9 | 11,1 | 34,9 | 30,2 | 22,3 | 15,9 | 60,3 | 4 | 15,9 | 0,400 |
| 3/4" | 98,4 | 12,7 | 42,9 | 38,1 | 27,7 | 15,9 | 69,8 | 4 | 15,9 | 0,700 |
| 1" | 107,9 | 14,3 | 50,8 | 49,2 | 34,5 | 17,5 | 79,4 | 4 | 15,9 | 0,800 |
| 1 1/4" | 117,5 | 15,9 | 63,5 | 58,8 | 43,2 | 20,6 | 88,9 | 4 | 15,9 | 1,100 |
| 1 1/2" | 127,0 | 17,5 | 73,0 | 65,1 | 49,5 | 22,2 | 98,4 | 4 | 15,9 | 1,400 |
| 2" | 152,4 | 19,0 | 92,1 | 77,8 | 62,0 | 25,4 | 120,6 | 4 | 19,0 | 2,200 |
| 2 1/2" | 177,8 | 22,2 | 104,8 | 90,5 | 74,7 | 28,6 | 139,7 | 4 | 19,0 | 3,600 |
| 3" | 190,5 | 23,8 | 127,0 | 107,9 | 90,7 | 30,2 | 152,4 | 4 | 19,0 | 4,100 |
| 3 1/2" | 215,9 | 23,8 | 139,7 | 122,2 | 103,4 | 31,7 | 177,8 | 8 | 19,0 | 5,200 |
| 4" | 228,6 | 23,8 | 157,2 | 134,9 | 116,1 | 33,3 | 190,5 | 8 | 19,0 | 5,600 |
| 5" | 254,0 | 23,8 | 185,7 | 163,6 | 143,8 | 36,5 | 215,9 | 8 | 22,2 | 6,300 |
| 6" | 279,4 | 25,4 | 215,9 | 192,1 | 170,7 | 39,7 | 241,3 | 8 | 22,2 | 7,500 |
| 8" | 342,9 | 28,6 | 269,9 | 246,1 | 221,5 | 44,4 | 298,4 | 8 | 22,2 | 12,600 |
| 10" | 406,4 | 30,2 | 323,8 | 304,8 | 276,3 | 49,2 | 361,9 | 12 | 25,4 | 18,500 |
| 12" | 482,6 | 31,7 | 381,0 | 365,1 | 327,1 | 55,6 | 431,8 | 12 | 25,5 | 28,000 |
| 14" | 533,4 | 34,9 | 412,7 | 400,0 | 359,1 | 57,1 | 476,2 | 12 | 28,6 | 36,000 |
| 16" | 596,9 | 36,5 | 469,9 | 457,2 | 410,5 | 63,5 | 539,7 | 16 | 28,6 | 46,000 |
| 18" | 635,0 | 39,7 | 533,4 | 504,8 | 461,8 | 68,3 | 577,8 | 16 | 31,7 | 50,000 |
| 20" | 698,5 | 42,9 | 584,2 | 558,8 | 513,1 | 73,0 | 635,0 | 20 | 31,7 | 64,000 |
| 22" | 749,3 | 46,0 | 641,2 | 609,6 | 564,4 | 79,4 | 692,1 | 20 | 34,9 | 72,000 |
| 24" | 812,8 | 47,6 | 692,1 | 663,6 | 615,9 | 82,5 | 749,3 | 20 | 34,9 | 89,000 |
| ANSI/ASME/ASA B16.5 600lb/sq.in. Flanges WN-RF | ||||||||||
| ø | D | b | g | m | J | h | k | Holes | l | Kg. |
| 1/2" | 95,2 | 14,3 | 34,9 | 38,1 | 22,3 | 22,2 | 66,7 | 4 | 15,9 | 0,800 |
| 3/4" | 117,5 | 15,9 | 42,9 | 47,6 | 27,7 | 25,4 | 82,5 | 4 | 19,0 | 1,400 |
| 1" | 123,8 | 17,5 | 50,8 | 54,0 | 34,5 | 27,0 | 88,9 | 4 | 19,0 | 1,600 |
| 1 1/4" | 133,3 | 20,6 | 63,5 | 63,5 | 43,2 | 28,6 | 98,4 | 4 | 19,0 | 2,100 |
| 1 1/2" | 155,6 | 22,2 | 73,0 | 69,8 | 49,5 | 31,7 | 114,3 | 4 | 22,2 | 3,100 |
| 2" | 165,1 | 25,4 | 92,1 | 84,1 | 62,0 | 36,5 | 127,0 | 8 | 19,0 | 3,700 |
| 2 1/2" | 190,5 | 28,6 | 104,8 | 100,0 | 74,7 | 41,3 | 149,2 | 8 | 22,2 | 5,400 |
| 3" | 209,5 | 31,7 | 127,0 | 117,5 | 90,7 | 46,0 | 168,3 | 8 | 22,2 | 7,300 |
| 3 1/2" | 228,6 | 34,9 | 139,7 | 133,3 | 103,4 | 49,2 | 184,1 | 8 | 25,4 | 8,900 |
| 4" | 273,0 | 38,1 | 157,2 | 152,4 | 116,1 | 54,0 | 215,9 | 8 | 25,4 | 11,800 |
| 5" | 330,2 | 44,4 | 185,7 | 188,9 | 143,8 | 60,3 | 266,7 | 8 | 28,6 | 24,500 |
| 6" | 355,6 | 47,6 | 215,9 | 222,2 | 170,7 | 66,7 | 292,1 | 12 | 28,6 | 29,500 |
| 8" | 419,1 | 55,6 | 269,9 | 273,0 | 221,5 | 76,2 | 349,2 | 12 | 31,7 | 43,000 |
| 10" | 508,0 | 63,5 | 323,8 | 342,8 | 276,3 | 85,7 | 431,8 | 16 | 34,9 | 70,000 |
| 12" | 558,8 | 66,7 | 381,0 | 400,0 | 327,1 | 92,1 | 488,9 | 20 | 34,9 | 86,000 |
| 14" | 603,2 | 69,8 | 412,7 | 431,8 | 359,1 | 93,7 | 527,0 | 20 | 38,1 | 100,000 |
| 16" | 685,8 | 76,2 | 469,9 | 495,3 | 410,5 | 106,4 | 603,2 | 20 | 41,3 | 142,000 |
| 18" | 742,9 | 82,5 | 533,4 | 546,1 | 461,8 | 117,5 | 654,0 | 20 | 44,4 | 175,000 |
| 20" | 812,8 | 88,9 | 584,2 | 609,6 | 513,1 | 127,0 | 723,9 | 24 | 44,4 | 232,000 |
| 22" | 869,9 | 95,2 | 641,2 | 666,7 | 564,4 | 133,3 | 777,9 | 24 | 47,6 | 292,000 |
| 24" | 939,8 | 101,6 | 692,1 | 717,5 | 615,9 | 139,7 | 838,2 | 24 | 50,8 | 330,000 |
ASME B16.5 Forged Flange Weight Chart
| Rated Diameter | O.D. of Pipe | Flange Parameter | Neck Size | Size of R.F. | Bolts | Approx. Weight | |||||||
| DN | d1 | D | d5 | b | k | h | d3 | r | d4 | f | No. of holes |
d2 | KG |
| 10 | 17.2 | 90 | 17.7 | 14 | 60 | 20 | 30 | 4 | 40 | 2 | 4 | 14 | 0.56 |
| 15 | 21.3 | 95 | 22 | 14 | 65 | 20 | 35 | 4 | 45 | 2 | 4 | 14 | 0.62 |
| 20 | 26.9 | 105 | 27.6 | 16 | 75 | 24 | 45 | 4 | 58 | 2 | 4 | 14 | 0.91 |
| 25 | 33.7 | 115 | 34.4 | 16 | 85 | 24 | 52 | 5 | 68 | 2 | 4 | 14 | 1.09 |
| 32 | 42.4 | 140 | 43.1 | 16 | 100 | 26 | 60 | 5 | 78 | 2 | 4 | 18 | 1.58 |
| 40 | 48.3 | 150 | 49 | 16 | 110 | 26 | 70 | 5 | 88 | 3 | 4 | 18 | 1.76 |
| 50 | 60.3 | 165 | 61.1 | 18 | 125 | 28 | 85 | 5 | 102 | 3 | 4 | 18 | 2.39 |
| 65 | 76.1 | 185 | 77.1 | 18 | 145 | 32 | 105 | 5 | 122 | 3 | 4 | 18 | 3.1 |
| 80 | 88.9 | 200 | 90.3 | 20 | 160 | 34 | 118 | 5 | 138 | 3 | 8 | 18 | 3.77 |
| 100 | 114.3 | 220 | 115.9 | 20 | 180 | 38 | 140 | 5 | 158 | 3 | 8 | 18 | 4.29 |
| 125 | 139.7 | 250 | 141.6 | 22 | 210 | 40 | 168 | 5 | 188 | 3 | 8 | 18 | 5.86 |
| 150 | 168.3 | 285 | 170.5 | 22 | 240 | 44 | 196 | 5 | 212 | 3 | 8 | 22 | 7.22 |
| 175 | 193.7 | 315 | 196.1 | 24 | 270 | 44 | 224 | 6 | 242 | 3 | 8 | 22 | 9.18 |
| 200 | 219.4 | 340 | 222 | 24 | 295 | 44 | 247 | 6 | 268 | 3 | 8 | 22 | 9.95 |
| 250 | 273 | 395 | 276 | 26 | 350 | 46 | 300 | 6 | 320 | 3 | 12 | 22 | 12.69 |
| 300 | 323.9 | 445 | 327 | 26 | 400 | 46 | 352 | 6 | 370 | 4 | 12 | 22 | 14.4 |
| 350 | 355.6 | 505 | 359 | 26 | 460 | 53 | 398 | 10 | 430 | 4 | 16 | 22 | 22.36 |
| 400 | 406.4 | 565 | 410 | 26 | 515 | 57 | 448 | 10 | 482 | 4 | 16 | 26 | 26.85 |
| 450 | 457 | 615 | 461 | 28 | 565 | 62 | 502 | 10 | 532 | 4 | 20 | 26 | 32.53 |
| 500 | 508 | 670 | 512 | 28 | 620 | 67 | 552 | 10 | 585 | 4 | 20 | 26 | 37.84 |
| 600 | 610 | 780 | 614 | 28 | 725 | 75 | 658 | 10 | 685 | 5 | 20 | 30 | 49.32 |
| 700 | 711 | 895 | 716 | 30 | 840 | 77 | 760 | 10 | 800 | 5 | 24 | 30 | 63.86 |
| 800 | 813 | 1015 | 818 | 32 | 950 | 84 | 864 | 10 | 905 | 5 | 24 | 33 | 85.19 |
| 900 | 914 | 1115 | 920 | 34 | 1050 | 88 | 969 | 10 | 1005 | 5 | 28 | 33 | 101.4 |
| 1000 | 1016 | 1230 | 1022 | 34 | 1160 | 92 | 1071 | 10 | 1110 | 5 | 28 | 36 | 119.7 |
