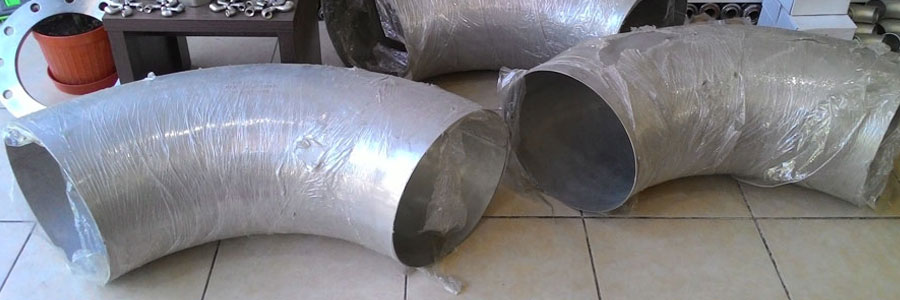

VM Energy Solutions INC is an acknowledged supplier and exporter of 45 Degree Elbow Pipe Fittings, which may be hardened via way of means of cold working, however now no longer via way of means of heat treatment. Our customers can avail from us a complete variety of these Stainless Steel 45 Degree Elbow Pipe Fittings which might be synthetic in step with the triumphing enterprise standards. The choice of the appropriate steel for each application is the end result of numerous considerations. They are made of excessive quality raw material and consequently comply with international quality standard and make certain excessive sturdiness and resistivity to destructive conditions. It is used for production components which have to be proof against scaling as much as approximately 1150 Degree C. It is successfully a kind of stainless with a better stage of silicon, for expanded excessive-temperature oxidation resistance.
With regard to countrywide and international nature of crude materials, we likewise offer these Carbon Steel 45 Degree Elbow Pipe Fittings in tweaked sizes and thicknesses in line with particular demands via way of means of our seemed clients at exhibit driving costs. It agree to the international standards and are regarded for its features, together with dimensional accuracy, excessive tensile power & sturdiness. In intermittent provider, it is able to be used at temperatures as much as 1900 Degree F because it resists scaling and has a distinctly low coefficient of expansion.
We observed that via way of means of the use of this Alloy Steel 45 Degree Elbow Pipe Fittings on an out of doors enclosure so as to be uncovered to the elements (like on an oil rig, for example) now no longer simplest will increase the lifestyles span of the enclosure however it's far an awful lot more secure to be round. We assist clients broaden their strength resources, bringing global magnificence functionality and handing over product locally, due to the fact we sell industrial preparations which might be aligned to our clients’ needs. It is utilized in applications that take gain of its top notch excessive-temperature scaling resistance and creep power.
We Keep Bulk Stock Of Buttweld 45° Short Radius Elbow, Carbon Steel 45 Deg Short Radius Elbow at Our Stockyard, Check Nickel Alloy 45 Degree Elbows Dimension, Buy Monel 45 Deg Buttweld Elbow At an Affordable Price In India.
Dimensions | ASME B16.25, B16.28, MSS-SP-43, ANSI/ASME B16.9 |
Fabricated 45 Deg Elbow Size | 1/2" (15 NB) to 48" (1200NB) |
Seamless 45 Deg Elbow Size | 1/2"~24" |
Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Form | 45 Deg Short Radius Elbow, 45 Deg Long Radius Elbow |
Type | Welded, Seamless, Fabricated |
Stainless Steel 45 Deg Elbow | ASTM A403 WP316, 316L, WP304, 304L, ASTM A182 F316L, 304L, 304H, 309, 310, 316, 316L, 317L, 321, 347, 454L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
Alloy Steel 45 Deg Elbow | ASTM A234, ASME SA234 WP1, WP5, WP9, WP11, WP22, WP91 |
Super Duplex 45 Deg Elbow | ASTM A815 / ASME SA815 UNS No S32750, S32950 |
Duplex Steel 45 Deg Elbow | ASTM A815 / ASME SA815 UNS No S31803, S32205 |
Nickel Alloy 45 Deg Elbow | ASTM B336, ASME SB336, Nickel 200 (UNS N02200), Nickel 201 (UNS N02201), Monel 400 (UNS N04400), Monel 500 (UNS N05500), Inconel 800 (UNS N08800), Inconel 825 (UNS N08825), Inconel 600 (UNS N06600), Inconel 625 (UNS N06625), Inconel 601 (UNS N06601), Hastelloy C 276 (UNS N10276), Titanium (Grade I & II), Alloy 20 (UNS N08020), Cupro Nickel 70/30, CuNi30Mn1Fe, CuNi10Fe1Mn. |
Carbon Steel 45 Deg Elbow | ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
Low Temperature Carbon Steel 45 Deg Elbow | ASTM A420 WPL3, A420 WPL6 |
Nom. Pipe Size |
Pipe Sched. or No. |
Center- to-end Dimen. |
Outside Dia. |
Inside Dia. |
Wall Thick. |
Approx. Weight (lb.) |
F | OD | ID | T | |||
STANDARD WEIGHT | ||||||
1/2 | 40 | 5/8 | 0.840 | 0.622 | 0.109 | 0.1 |
3/4 | 40 | 7/16 | 1.050 | 0.824 | 0.113 | 0.1 |
1 | 40 | 7/8 | 1.315 | 1.049 | 0.133 | 0.2 |
1 1/4 | 40 | 1 | 1.660 | 1.380 | 0.140 | 0.4 |
1 1/2 | 40 | 1 1/8 | 1.900 | 1.610 | 0.145 | 0.5 |
2 | 40 | 1 3/8 | 2.375 | 2.067 | 0.154 | 0.9 |
2 1/2 | 40 | 1 3/4 | 2.875 | 2.469 | 0.203 | 1.5 |
3 | 40 | 2 | 3.500 | 3.068 | 0.216 | 2.5 |
3 1/2 | 40 | 2 1/4 | 4.000 | 3.548 | 0.226 | 3.5 |
4 | 40 | 2 1/2 | 4.500 | 4.026 | 0.237 | 4.8 |
5 | 40 | 3 1/8 | 5.563 | 5.047 | 0.258 | 7.8 |
6 | 40 | 3 3/4 | 6.625 | 6.065 | 0.280 | 12 |
8 | 40 | 5 | 8.625 | 7.981 | 0.322 | 23 |
10 | 40 | 6 1/4 | 10.750 | 10.020 | 0.365 | 42 |
12 | - | 7 1/2 | 12.750 | 12.000 | 0.375 | 61 |
14 | 30 | 8 3/4 | 14.000 | 13.250 | 0.375 | 79 |
16 | 30 | 10 | 16.000 | 15.250 | 0.375 | 103 |
18 | - | 11 1/4 | 18.000 | 17.250 | 0.375 | 132 |
20 | 20 | 12 1/2 | 20.000 | 19.250 | 0.375 | 160 |
22 | 20 | 13 1/2 | 22.000 | 21.250 | 0.375 | 195 |
24 | 20 | 15 | 24.000 | 23.250 | 0.375 | 238 |
EXTRA STRONG | ||||||
Nom. Pipe Size |
Pipe Sched. or No. |
Center- to-end Dimen. |
Outside Dia. |
Inside Dia. |
Wall Thick. |
Approx. Weight (lb.) |
F | OD | ID | T | |||
1/2 | 80 | 5/8 | 0.840 | 0.546 | 0.147 | 0.2 |
3/4 | 80 | 7/16 | 1.050 | 0.742 | 0.154 | 0.3 |
1 | 80 | 7/8 | 1.315 | 0.957 | 0.179 | 0.4 |
1 1/4 | 80 | 1 | 1.660 | 1.278 | 0.191 | 0.5 |
1 1/2 | 80 | 1 1/8 | 1.900 | 1.500 | 0.200 | 0.6 |
2 | 80 | 1 3/8 | 2.375 | 1.939 | 0.218 | 1.1 |
2 1/2 | 80 | 1 3/4 | 2.875 | 2.323 | 0.276 | 2.1 |
3 | 80 | 2 | 3.500 | 2.900 | 0.300 | 3.5 |
3 1/2 | 80 | 2 1/4 | 4.000 | 3.364 | 0.318 | 4.8 |
4 | 80 | 2 1/2 | 4.500 | 3.826 | 0.337 | 6.5 |
5 | 80 | 3 1/8 | 5.563 | 4.813 | 0.375 | 11 |
6 | 80 | 3 3/4 | 6.625 | 5.761 | 0.432 | 18 |
8 | 80 | 5 | 8.625 | 7.625 | 0.500 | 35 |
10 | 60 | 6 1/4 | 10.750 | 9.750 | 0.500 | 56 |
12 | - | 7 1/2 | 12.750 | 11.750 | 0.500 | 80 |
14 | - | 8 3/4 | 14.000 | 13.000 | 0.500 | 100 |
16 | 40 | 10 | 16.000 | 15.000 | 0.500 | 131 |
18 | - | 11 1/4 | 18.000 | 17.000 | 0.500 | 172 |
20 | 30 | 12 1/2 | 20.000 | 19.000 | 0.500 | 210 |
22 | 30 | 13 1/2 | 22.000 | 21.000 | 0.500 | 259 |
24 | - | 15 | 24.000 | 23.000 | 0.500 | 302 |
DIMENSIONAL TOLERANCES - ELBOWS | |||||||
For all fittings | Elbows 90/45 deg | 180° Returns | |||||
Nominal Pipe Size (NPS) | Outside Ø at Bevel |
Inside Ø at End |
Wall Thickness t / t1 |
Center to End Dim. A-B-C-M | Center to Center Dim. O |
Back to Face Dim. K |
Align- ment of Ends U |
1/2 a 2 1/2 | 1 | 0,8 | Not | 2 | 7 | 7 | 1 |
3 a 3 1/2 | 1 | 1,6 | less | 2 | 7 | 7 | 1 |
4 | +2 -1 | 1,6 | than | 2 | 7 | 7 | 1 |
5 a 6 | +3 -1 | 1,6 | 87,50% | 2 | 7 | 7 | 1 |
8 | 2 | 1,6 | of nominal | 2 | 7 | 7 | 1 |
10 | +4 -3 | 3,2 | tickness | 2 | 7 | 7 | 2 |
12 a 18 | +4 -3 | 3,2 | 3 | 10 | 7 | 2 | |
20 a 24 | +6 -5 | 4,8 | 3 | 10 | 7 | 2 | |
26 a 30 | +7 -5 | 4,8 | 3 | ..... | ..... | ..... | |
32 a 48 | +7 -5 | 4,8 | 5 | ..... | ..... | ..... |
