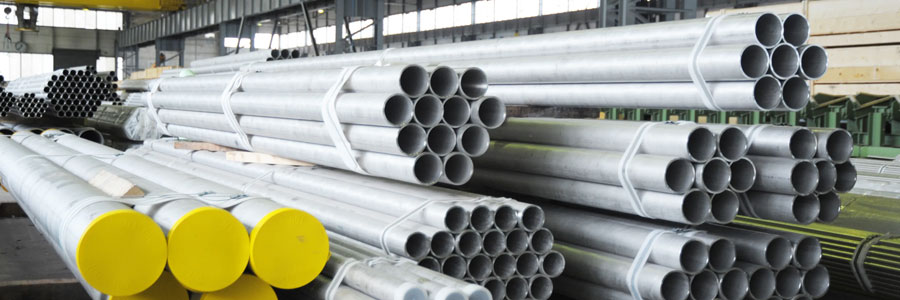

SUS 316L Pipes & Tubes
SUS 316L, a low-carbon variant of the renowned SUS 316 stainless steel, stands as a prime choice for various industrial applications. Its pipes and tubes exemplify durability, corrosion resistance, and versatility, making them indispensable in sectors like chemical processing, petrochemicals, pharmaceuticals, and more. Crafted with precision, SUS 316L pipes boast a seamless design, ensuring optimal flow and minimal pressure drop. This seamless construction enhances their structural integrity, making them suitable for high-pressure environments. The tubes, characterized by their exceptional corrosion resistance, are adept at withstanding harsh chemicals and corrosive fluids.
The austenitic structure of SUS 316L lends itself to excellent weldability and formability, facilitating seamless integration into diverse projects. These pipes and tubes find utility in transporting liquids and gases, ensuring the integrity of the conveyed substances. What sets SUS 316L apart is its resistance to chloride corrosion, making it ideal for marine and coastal applications. Additionally, its high-temperature stability positions it as a reliable choice for heat exchangers and boiler components. In conclusion, SUS 316L pipes and tubes epitomize reliability, longevity, and performance. When quality is paramount, these stainless steel solutions emerge as the go-to option, meeting the stringent demands of modern industrial processes.
SUS 316L Pipes & Tubes Standard Specification
| Specifications | ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358 |
| Dimensions | ASTM, ASME and API |
| SS 316L Pipes | 1/2″ NB – 16″ NB |
| ERW 316L Pipes | 1/2″ NB – 24″ NB |
| EFW 316L Pipes | 6″ NB – 100″ NB |
| Size | 1/8″NB TO 30″NB IN |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round Pipes, Custom Pipes, Square Pipes, Rectangular Pipe, “U” Shape, Hydraulic Pipes |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
SUS 316L SS Pipes Equivalent Grades
| Grade | 316L | |
| UNS No | S31603 | |
| Old British | BS | 304S11 |
| En | 58E | |
| Euronorm | No | 1.4436 |
| Name | X5CrNiMo17-13-3 | |
| Swedish SS | 2348 | |
| Japanese JIS | SUS 316L | |
SUS Pipes & Tubes Grades
SUS 316L Pipes & Tubes Chemical Composition
| Grade | 316L | |
|---|---|---|
| min | max | |
| C | – | 0.08 |
| Mn | – | 2.0 |
| Si | – | 0.75 |
| P | – | 0.045 |
| S | – | 0.03 |
| Cr | 16.0 | 18.0 |
| Mo | 2.00 | 3.00 |
| Ni | 10.0 | 14.0 |
| N | – | 0.10 |
SUS 316L Pipes & Tubes Mechanical Properties
| Grade | 316L | |
|---|---|---|
| Tensile Strength (MPa) min | 515 | |
| Yield Strength 0.2% Proof (MPa) min | 205 | |
| Elongation (% in 50mm) min | 40 | |
| Hardness | Rockwell B (HR B) max | 95 |
| Rockwell B (HR B) max | 217 | |
Bulk Stock of SUS 316L Pipes, Rate of ASTM A312 TP SUS 316L Tubes in India, Check online SUS 316L Stainless Steel Capillary Tubing Pressure Ratings We offer Stainless Steel SUS 316L Welded Pipes in almost all Sizes.
SUS 316L Pipes Physical Properties
| Grade | 316L | |
|---|---|---|
| Density (kg/m3) | 8000 | |
| Elastic Modulus (GPa) | 193 | |
| Mean Coefficient of Thermal Expansion (m/m/0C) | 0-1000C | 15.9 |
| 0-3150C | 16.2 | |
| 0-5380C | 17.5 | |
| Thermal Conductivity (W/m.K) | at 1000C | 16.3 |
| at 5000C | 21.5 | |
| Specific Heat 0-1000C (J/kg.K) | 500 | |
| Electrical Resistivity (n.m) | 740 | |
Largest Inventory Of SUS 316L Pipes & Tubes
- Stainless Steel SUS 316L Capillary Tubing
- ss SUS 316L Hollow Pipes
- SUS 316L Stainless Steel ERW Pipes
- SUS 316L Hot Rolled Pipes
- Stainless Steel SUS 316L Seamless Pipes
- ASTM A312 SS SUS 316L Seamless Tubing
- Stainless Steel SUS 316L Welded Tube
- SS SUS 316L Round Pipe
- Stainless Steel SUS 316L Fabricated Pipes
- SUS 316L Pipes
- SUS 316L Stainless Steel Tubes
- Stainless Steel SUS 316L Welded Pipes
- SUS 316L Square Tube
- SUS 316L Seamless Tubing
- SUS 316L Stainless Steel ERW Pipe
- SUS 316L Cold Drawn Pipes
- ASTM A312 SUS TP 316L LSAW Pipes
- SS SUS 316L BS 4504 EFW Pipes
- SUS 316L Stainless Steel Tubing
- ASME SA312 SUS TP 316L SS Square Pipe
- SS SUS 316L Welded Tube
- SS SUS 316L Seamless Piping
- SUS 316L Stainless Steel Tube
- SUS 316L Stainless Steel Round Pipe
- SUS 316L Round Tubes
- SS SUS 316L Hexagonal Pipes
ASTM A312 SUS 316L Pipes & Tubes Application
