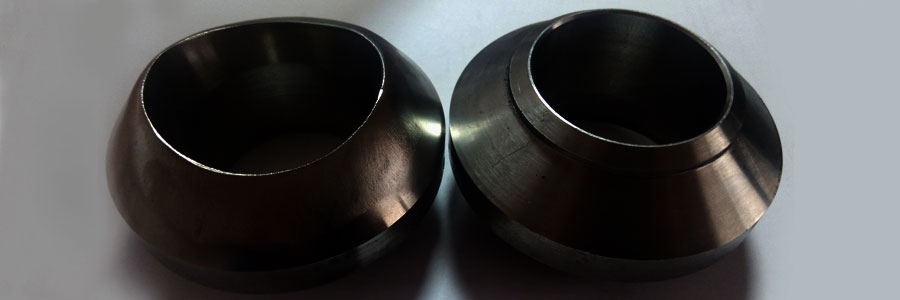

VM Energy Solutions INC is an identified supplier and exporter of AS F5 Olets, which may be machined within the annealed circumstance. Alloy Steel F5 Welding Outlet is discovered in almost each steel product, and so they are diagnosed for his or her robust creation and dimensional accuracy in nature. In music by using enterprise standard, we provide the whole variety of this product in numerous made-to-order alternatives and main enterprise prices. Also, our series of this product surpasses the global and national standards of protection and pleasant. Our offered this product is reviewed through our pleasant supervisors to ensure in giving hovering durability. It is taken into consideration bearing in thoughts the need of the enterprise. They are appreciably utilized in Multi Storey Building, Industrial Buildings, Road Bridge compound manufacture, Ports and Harbour.
Alloy Steel F5 Threading Outlet also are utilized in Industrial systems Railways, Offshore Drilling Rigs and are as well moreover to above said utilities. As it accommodates much less carbon content material than different steels, it is comfortable to cold-shape, making them casual to handle. This product covers under percentage of carbon content material that makes it magnetize well. It is extremely well-appreciated steel and is likewise one of the cheaper kinds of steel obtainable. These steel are exactly designed at our particularly evolved production unit following enterprise defined standards. It is the maximum broadly used of all of the precipitation-hardening steels.
Alloy Steel F5 Socket Weld Outlet is martensitic precipitation-hardening steel that offers a top notch mixture of excessive strength. It has appropriate corrosion resistance and appropriate mechanical homes at temperatures as much as 600 Degree F (316 Degree C). It additionally has appropriate sturdiness in each base steel and welds, and short-time with low-temperature warmth remedies that reduce warpage and scaling. The treasured mixture of this steel homes offers designers possibilities to feature reliability to their products even as simplifying fabrication and regularly reducing costs. Typical utilization of this steel is visible in applications requiring excessive strength and a modest degree of corrosion resistance.
We Keep Bulk Stock Of UNS K41545 Coupolet, Chrome Moly Gr F5 Outlet Fittings at Our Stockyard, Check Grade F5 Alloy Olets Dimension, Buy Chrome Moly F5 Welding Outlet at an Affordable Price In India.
Alloy Steel F5 Outlet Fittings Standard | ASTM A182 / ASME SA182 |
---|---|
Alloy Steel F5 Outlet Fittings Dimensions | ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc |
Alloy Steel F5 Outlet Fittings Size | 1/8″-4″ (DN6-DN100) |
Alloy Steel F5 Outlet Fittings Connect Type | Welded, threaded, BW, SW |
Alloy Steel F5 Outlet Pipe Diameter | DN15 ~ DN40 |
Alloy Steel F5 Outlet Fittings | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Alloy Steel F5 Outlet Process | Free forging, plate cutting, forged |
Origin of Alloy Steel F5 Outlet | Indian Origin, European Origin, Japanese Origin |
Alloy Steel F5 Outlet Fittings Packing | Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests |
Test Certificates |
Mill Test Certificates F5 Outlet Fittings Chemical Reports EN 10204 3.1 Mechanical Reports, Destructive Test Report Non Destructive Test Reports F5 Outlet Fittings PMI Test Reports Alloy Steel F5 Outlet Fittings Visual Inspection Reports NABL Approved Lab Reports |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 Test Certificates certifying NACE MR0103, NACE MR0175 |
Standard | Description |
ASTM A182 | Standard Specification for Alloy Steel F5 Outlet Fittings |
ANSI ASME B16.11 | Socket-welding and Threaded Outlet fittings |
MSS SP 79 | Standard Specification for Alloy Steel F5 Insert Welding Outlet |
MSS SP-97 | SW,TH and BW ends for integrally reinforced forged branch outlet |
JIS B2316 | socket-welding outlets pipe fittings |
STANDARD | WERKSTOFF NR. | UNS |
Alloy Steel F5 | 1.7362 | K41545 |
Grade | C | Mn | Si | P | S | Cr | Mo |
Alloy Steel F5 | 0.15 max | 0.3-0.6 | 0.50 max | 0.030 max | 0.030 max | 4 – 6 | 0.44-0.65 |
Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Alloy Steel F5 | 275 | 485 | 20 % |
Dimensions
|
|||||
---|---|---|---|---|---|
Outlet Size Inches |
A | B | C | D | Apprx. Weight Pounds |
1/2 | 3/4 | 1 3/8 | 15/16 | 5/8 | 0.15 |
3/4 | 7/8 | 1 5/8 | 1 3/16 | 13/16 | 0.25 |
1 | 1 1/16 | 2 1/8 | 1 7/16 | 1 1/32 | 0.40 |
1 1/4 | 1 1/4 | 2 3/8 | 1 3/4 | 1 3/8 | 0.70 |
1 1/2 | 1 5/16 | 2 7/8 | 2 | 1 5/8 | 0.80 |
2 | 1 1/2 | 3 1/2 | 2 9/16 | 2 1/16 | 1.50 |
2 1/2 | 1 5/8 | 4 1/6 | 3 | 2 7/16 | 2.25 |
3 | 1 3/4 | 4 13/16 | 3 11/16 | 3 1/16 | 3.75 |
3 1/2 | 2 | 5 3/8 | 3 7/8 | 3 9/16 | 5.00 |
4 | 2 | 6 | 4 3/4 | 4 | 6.70 |
5 | 2 1/4 | 7 1/8 | 5 9/16 | 5 1/16 | 8.50 |
6 | 2 3/8 | 7 3/4 | 6 11/16 | 6 1/16 | 14.00 |
8 | 2 3/4 | 10 3/8 | 8 11/16 | 7 15/16 | 28.00 |
10 | 3 1/16 | 13 | 10 13/16 | 10 | 39.00 |
12 | 3 3/8 | 15 1/4 | 12 13/16 | 12 | 65.00 |
14 | 3 1/2 | 16 1/2 | 14 1/16 | 13 1/4 | 70.00 |
16 | 3 11/16 | 18 7/8 | 16 1/16 | 15 1/4 | 92.00 |
18 | 4 1/16 | 20 3/4 | 18 5/8 | 17 1/4 | 125.00 |
20 | 4 5/8 | 23 1/16 | 20 1/16 | 19 1/4 | 175.00 |
24 | 5 3/8 | 27 7/8 | 25 1/8 | 23 1/4 | 280.00 |
30 | 5 3/8 | 34 1/16 | 30 7/16 | 29 1/4 | 440.00 |
36 | 5 3/8 | 40 1/2 | 36 1/2 | 35 1/4 | 1180.00 |
Dimensions
|
||||
---|---|---|---|---|
Outlet Size Inches |
A | B | C | Apprx. Weight Pounds |
1/8 | 5/8 | 1 | 5/8 | 0.10 |
1/4 | 5/8 | 1 | 5/8 | 0.10 |
3/8 | 3/4 | 1 1/4 | 3/4 | 0.15 |
1/2 | 3/4 | 1 3/8 | 15/16 | 0.20 |
3/4 | 7/8 | 1 3/4 | 1 3/16 | 0.25 |
1 | 1 1/16 | 2 1/8 | 1 7/16 | 0.50 |
1 1/4 | 1 1/4 | 2 9/16 | 1 3/4 | 0.80 |
1 1/2 | 1 5/16 | 2 7/8 | 2 | 1.00 |
2 | 1 1/2 | 3 1/2 | 2 9/16 | 1.75 |
2 1/2 | 1 5/8 | 4 1/16 | 3 | 2.50 |
3 | 1 3/4 | 4 13/16 | 3 11/16 | 4.00 |
3 1/2 | 1 7/8 | 5 1/4 | 4 | 5.50 |
4 | 2 | 6 | 4 3/4 | 6.30 |
5 | 2 1/4 | 7 1/16 | 5 9/16 | 10.25 |
6 | 2 3/8 | 8 3/16 | 6 11/16 | 12.00 |
8 | 2 3/4 | 10 1/4 | 8 11/16 | 23.00 |
10 | 3 1/16 | 12 11/16 | 10 13/16 | 36.00 |
12 | 3 3/8 | 14 7/8 | 12 13/16 | 59.00 |
14 | 3 1/2 | 16 9/16 | 14 1/16 | 66.00 |
16 | 3 11/16 | 18 1/4 | 16 1/16 | 75.00 |
18 | 3 13/16 | 21 1/16 | 18 1/16 | 97.00 |
20 | 4 | 23 3/16 | 20 | 118.00 |
24 | 4 9/16 | 27 3/4 | 24 3/16 | 220.00 |
26 | 4 11/16 | 29 7/8 | 26 1/4 | 265.00 |
30 | 5 3/8 | 34 1/2 | 30 7/16 | 430.00 |
36 | 5 3/8 | 40 1/2 | 36 1/2 | 900.00 |
Outlet Size Inches |
A | B | C | Apprx. Weight Pounds |
