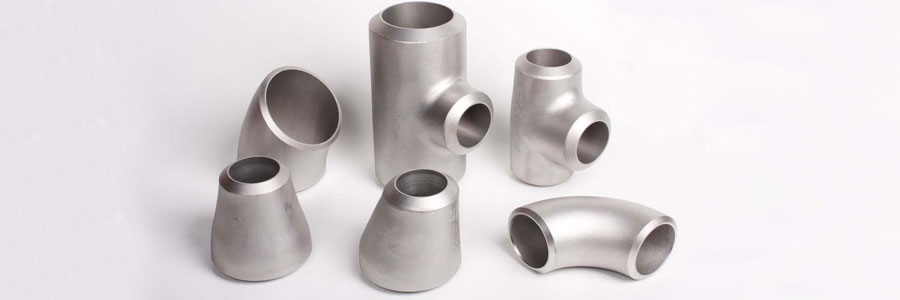

Alloy 20 Pipe Fittings

Alloy 20 90 degree Elbow, Carpenter 20 Elbow, Alloy 20 Buttweld Fittings, Incoloy® Alloy 20 Pipe Fittings at Best Price in India.

We are a renowned Alloy 20 Pipe Fittings manufacturer in India who produces the pipe fittings of the given specification in a size range of ½” NB to 8” NB. As the ASTM B366 UNS N08020 Elbow comes with high resistance to crevice corrosion and pitting, it is widely used in high-temperature applications such as heat exchangers, process piping, etc. The Alloy 20 is commonly known as UNS NO8020. It is a high alloy of a particular grade of stainless steel. The Alloy 20 Pipe Fittings have excellent mechanical properties such as resistance to chloride stress corrosion cracking and sulphuric acid. The Alloy 20 Tube Fittings mainly consist of nickel and copper in the alloy, with traces of molybdenum and chromium content.

Table of Contents
Elbows

In extreme environments too, the product has excellent stability. For production purposes, we use the best class raw material. Our products, therefore, have high demands for different industries, such as nuclear fuel processing plants or steel plants. We provide the Alloy 20 Reducers to the petrochemical, pickling, and acid processing units as they are resistant to corrosion attack initiated by a host of acidic solutions, like phosphoric, nitric and sulphuric acid. Additionally, they are stress corrosion cracking resistant in environments with boiling sulphuric acid.

Alloy 20 Reducer, Alloy 20 Pipe Elbow, Carpenter 20 Pipe Tee, ASTM B366 Incoloy® Alloy 20 Pipe Fittings, DIN 2.4660 45 Degree Elbow, ANSI B16.9 Alloy 20CB-3® Stub End, UNS N08020 Pipe Cap Supplier in Mumbai, India.


Alloy 20 Pipe Fittings

Alloy 20 is a combination of Nickel, Chromium, Molybdenum, and Copper, which helps to provide excellent attributes like corrosion resistance and durability. These Fitting had qualities like excellent resistance to corrosion, crevice corrosion, and pitting, strong resistance to stress-corrosion cracking, excellent resistance to other acids, highly suitable for fabrication, and unique mechanical properties. We are today widely dealing as a reliable manufacturer, supplier, and exporter of Alloy 20 Pipe Fittings. Regards to the product quality standards these UNS N08020 pipe fittings are supplied and exported at specifications that vary in standards.

We Keep Bulk Stock Of UNS N08020 Pipe Bend, Alloy 20 Pipe Fittings at Our Stockyard, Check Incoloy® Alloy 20 Welded Fittings Dimension, Buy Carpenter 20 Seamless Pipe Fittings at an Affordable Price In India.

Alloy 20 Pipe Fittings Standard Specification


Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200
BS : BS4504, BS4504, BS1560, BS10
JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316
GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380
EN: EN10253-1, EN10253-2
Types Seamless / ERW / Welded / Fabricated
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Specialized manufacturer of 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Alloy 20 Buttweld Fittings International Standard


Standard Code Standard Name
American Steel Pipe Fittings Standard
ANSI ASME SA-403 Forged Durimet pipe fittings
ANSI ASME B16.9 Factory-Made wrought steel pipe fittings
ANSI ASME B16.28 Wrought steel butt-welding short radius elbows and returns
ISO 5251 Stainless steel butt-welding fittings
MSS SP-43 Wrought stainless steel butt-welding fittings
MSS SP-75 Forging butt-welding fittings
German Steel Pipe Fittings Standard
DIN 2605 Steel butt-welding pipe fittings.elbows and bends
DIN 2615 Steel butt-welding pipe fittings.tees
DIN 2616 Steel butt-welding pipe fittings.reducers
DIN 2617 Steel butt-welding pipe fittings.caps
Japanese Steel Pipe Fittings Standard
JIS B2311 Universal steel butt-welding pipe fittings
JIS B2312 Steel butt-welding pipe fittings
JIS B2313 Steel plate butt-welding pipe fittings
Other Steel Pipe Fittings Standard
EN 1025 3 Butt-welding pipe fittings

Alloy 20 Pipe Fittings Equivalent Grade


STANDARD UNS WERKSTOFF NR. EN AFNOR
Alloy 20 N08020 2.4660 NiCr20CuMo Z2NCUD31-20AZ

Different Forms of Alloy 20 Pipe Fittings


Alloy 20 Elbow

Alloy 20 Elbow

Alloy 20 Stub End

Alloy 20 Stub End

Alloy 20 Cross

Alloy 20 Cross

Alloy 20 Pipe Cap

Alloy 20 Pipe Cap

Alloy 20 Tee

Alloy 20 Tee

Alloy 20 Pipe Bend

Alloy 20 Pipe Bend

Alloy 20 Pipe Nipple

Alloy 20 Pipe Nipple

Alloy 20 Concentric Reducer

Alloy 20 Concentric Reducer

Alloy 20 Eccentric Reducer

Alloy 20 Eccentric Reducer

Alloy 20 Pipe Fittings Chemical Composition


Grade C Mn Si S Cu Ni Cr Fe Mo P
Alloy 20 0.07 max 2.00 max 1.00 max 0.035 max 3.00 – 4.00 32.00 – 38.00 19.00 – 21.00 29.85 min* 2.00 – 3.00 0.045 max

Alloy 20 Pipe Fittings Mechanical Properties


Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Alloy 20 8.1 g/cm3 1443 °C (2430 °F) Psi -80,000, MPa -551 Psi – 35,000, MPa – 241 30 %
Flanges Icon

Bulk Stock of Incoloy® Alloy 20 Pipe Fittings, Rate of ASTM B366 Alloy 20 Pipe Cap in India, Check online Carpanter 20 Elbow Pressure Ratings, Largest DIN 2.4660 Reducer Stockist in India, We offer Alloy 20CB-3® Stub End in almost all Sizes.

Alloy 20 Buttweld Fittings Thickness Chart


Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Alloy 20 Pipe Fittings Tolerance Chart


Nominal Diameter O.D.For Bevel End I.D.For End Wall Thickness Elbow Tee Reducer Cap 180°Elbow
DN NPS A B C M H E O K Roughness
15-65 1/2-2 1/2 +1.6/-0.8 0.8 -12.50% 1.6 1.6 1.6 1.6 1.6 3.2 6.4 6.4 0.8
80-100 3-4 1.6 1.6 6.4
125-200 5-8 +2.4/-1.6
250-450 10-18 +4/-3.2 3.2 2.4 2.4 2.4 2.4 2.4 9.6
500-600 20-24 +6.4/-4.8 4.8 3.2 3.2 3.2 3.2 4.8 9.6
650-750 26-30
4.8 4.8 4.8 4.8
800-1200 32-48
1250-1500 50-60 +9.6/-6.4 6.4 9.6 9.6 9.6 9.6 9.6
1550-1750 62-70 +12.7/-9.6 9.6 12.7 12.7
1800-2000 72-80 +16/-12 12 16 16

Largest Inventory Of Alloy 20 Pipe Fittings


  • UNS N08020 45 Deg Elbow
  • Alloy 20 Pipe Fittings
  • Carpenter 20 Pipe Elbow
  • DIN 2.4660 Equal Cross
  • Incoloy® Alloy 20 SR Elbow
  • Alloy 20 Pipe Nipple
  • ASTM B366 Carpenter 20 Reducing Nipple
  • Carpenter 20 Reducer
  • Alloy 20 End Cap
  • Carpenter 20 Welded Fittings
  • DIN 2.4660 180° LR Return Bends
  • UNS N08020 Butt weld Elbow
  • Alloy 20CB-3® Elbow
  • Incoloy® Alloy 20 Reducing Cross
  • Alloy 20 Two Halve Butt weld Fittings
  • ASME B16.5 Carpenter 20 Buttweld Fittings
  • DIN 2.4660 Pipe Bend
  • UNS N08020 90° Short Radius Elbow
  • Alloy 20 Lap Joint Stub End
  • Alloy 20 90° Short Radius Elbow
  • Carpenter 20 Stub End
  • WERKSTOFF NR. 2.4660 Barrel Nipple
  • UNS N08020 Industrial Pipe Fittings
  • ASME SB366 Alloy 20 Eccentric Reducer
  • UNS N08020 Long Stub End
  • Alloy 20CB-3® LR Elbows
  • Carpenter 20 Long Stub End
  • Alloy 20CB-3® Butt weld Tee
  • Incoloy® Alloy 20 Lateral Tee
  • Carpenter 20 Two Joint Pipe Fittings
  • ANSI B16.5 Alloy 20 Mandrel Bend
  • ASTM B366 Incoloy® Alloy 20 Buttweld Fittings
  • DIN 2.4660 Butt weld Nipple
  • ANSI B16.5 Alloy 20 Pipe Fittings
  • ASME SB366 Alloy 20 Long Radius Bend
  • UNS N08020 1D Elbow/3D Elbow/5D Elbow
  • Carpenter 20 BS 4504 Piggable Bend
  • DIN 2.4660 Butt weld Fittings

ASTM B366 Alloy 20 Pipe Fittings Application
